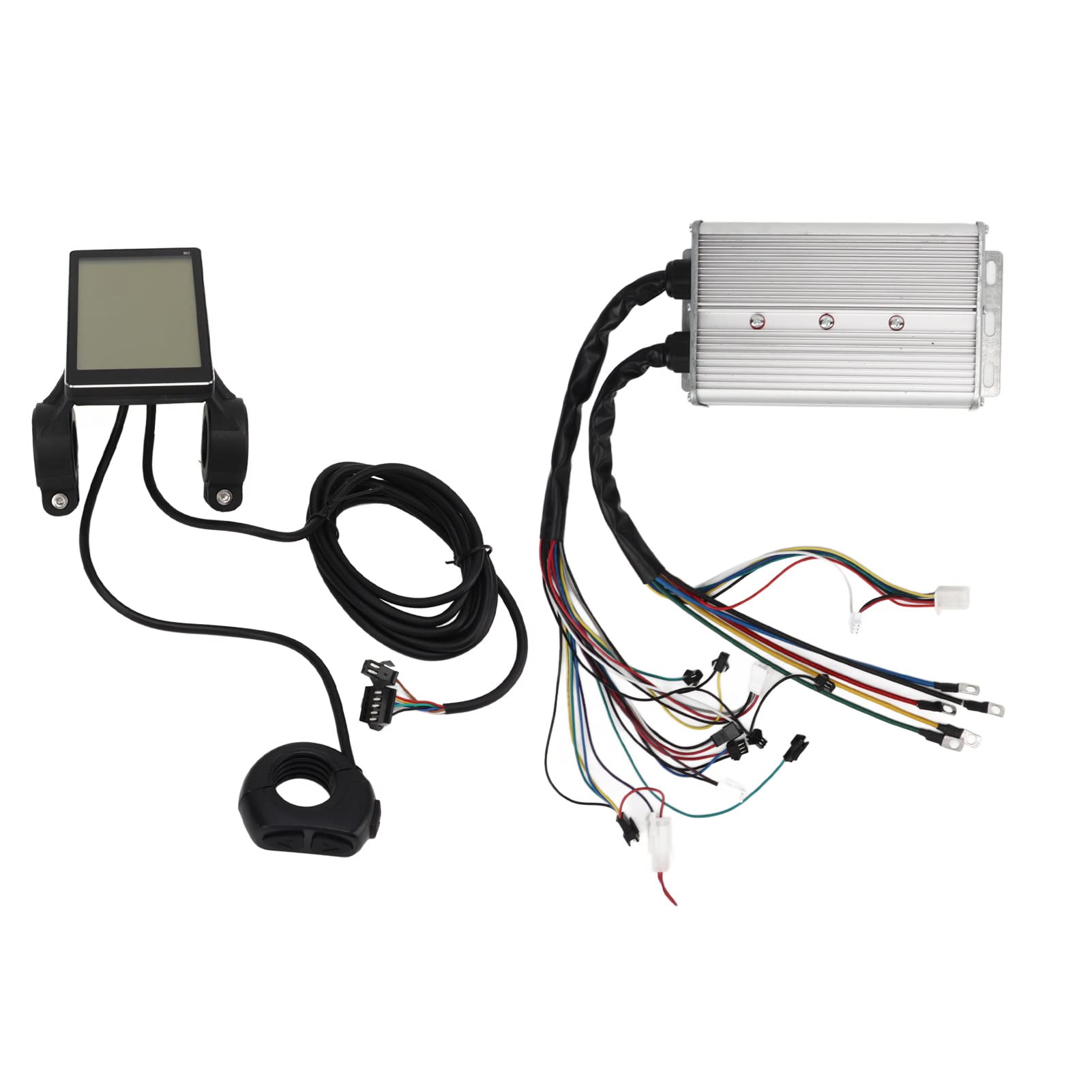

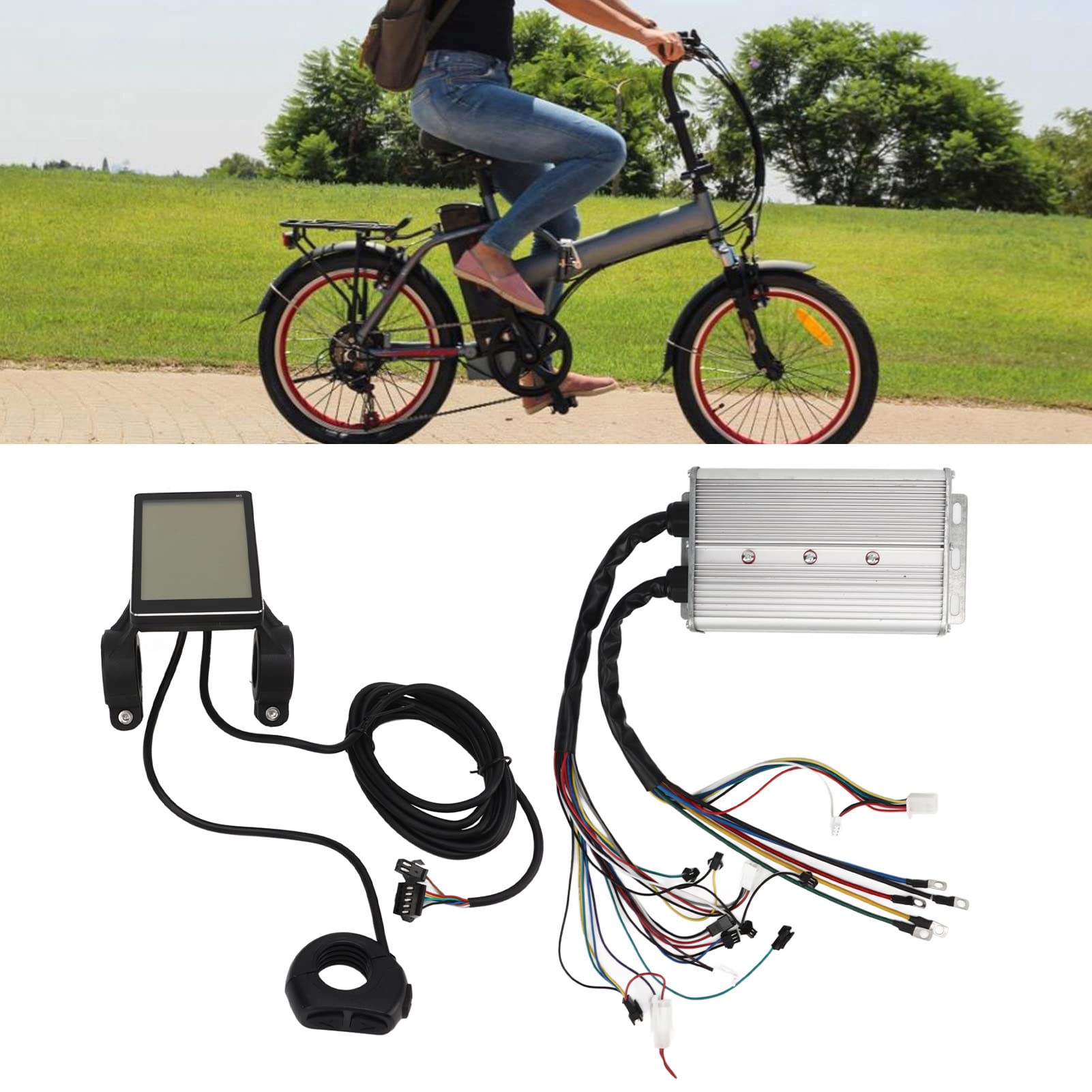

Motor Controller with M5 Panel,1500W 48V 60V Electric Scooter Brushless Motor Speed Controller Replacement Accessories

Description

Brand: Drfeify

Features:

n

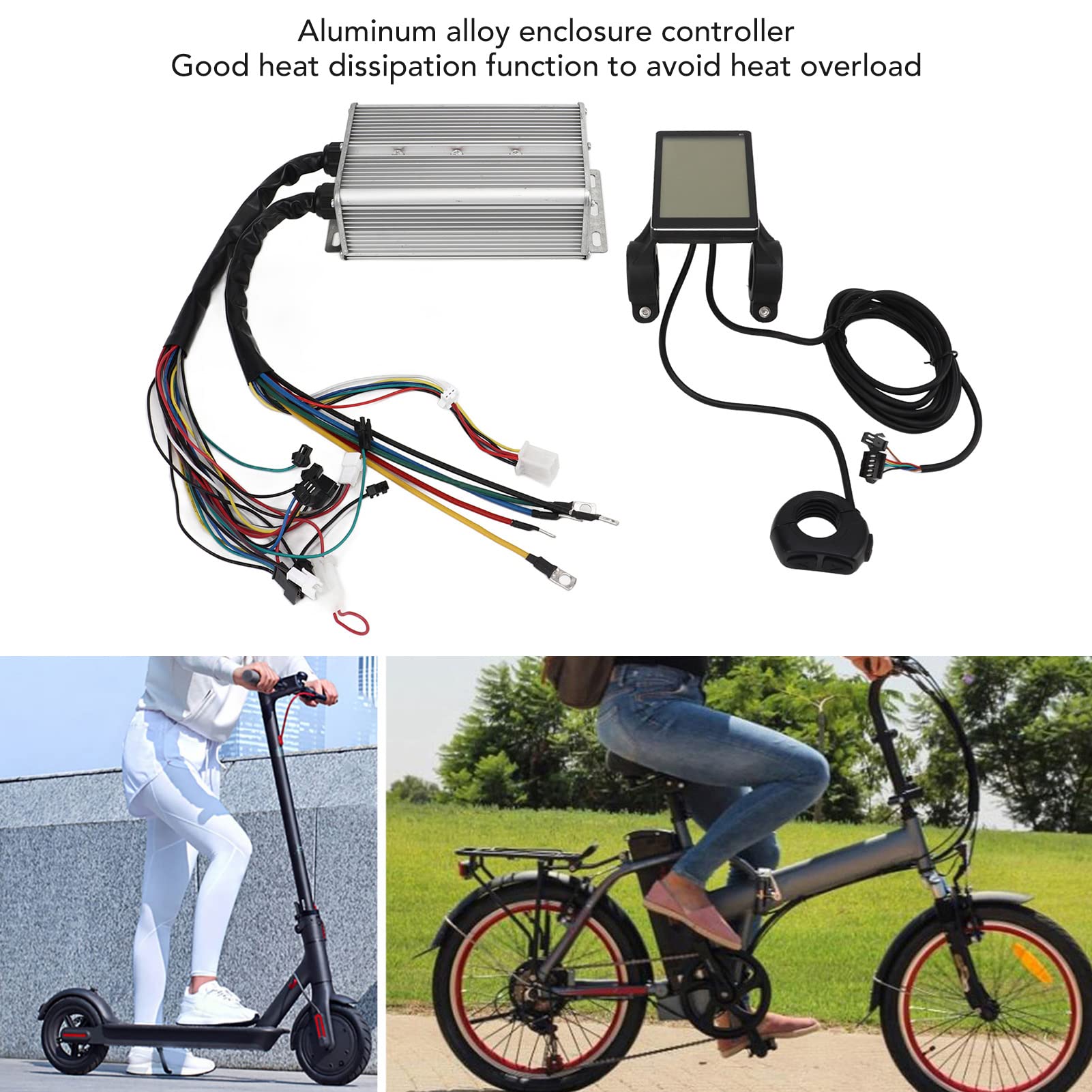

• Aluminum Controller: The controller shell is made of aluminum alloy and has a design. Because of the good heat dissipation function, it can guard the internal circuit, so as to avoid thermal overload.

n

• Convenient Installation: The controller is suitable for electric bicycles, electric scooters, etc. The panel is suitable for handlebars with a diameter of 22.5mm.

n

• Conversion: The conversion of greatly improves the riding fun, and is suitable for cyclists who like challenges. These accessories can be used separately. It can also be used in combination.

n

• Data Display: Single mileage and time, real time speed, battery power and voltage, gear indication cumulative average speed, total mileage, cumulative maximum speed, cruise indication, 6km/h boost and indication, real time power, real time current, fault code, etc.

n

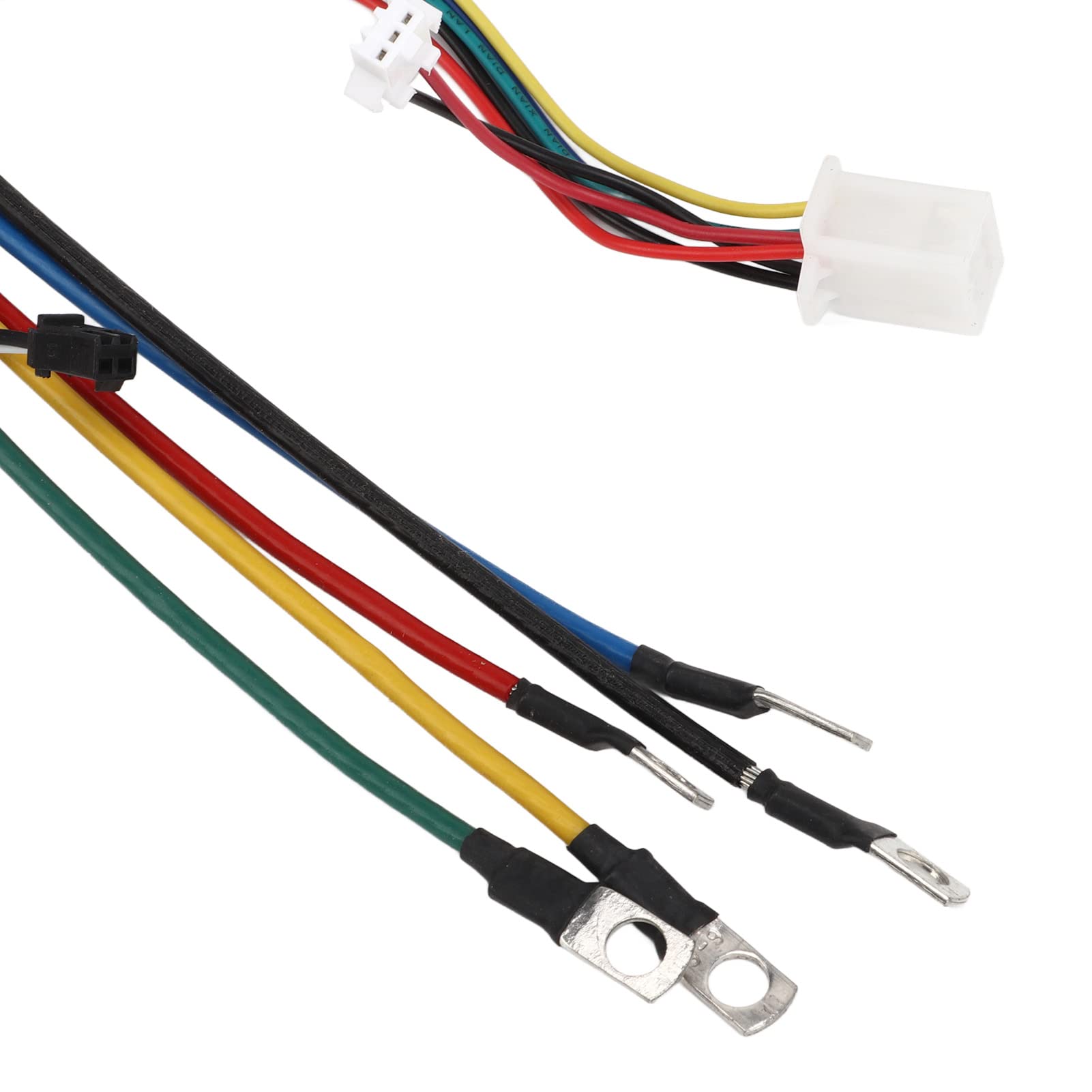

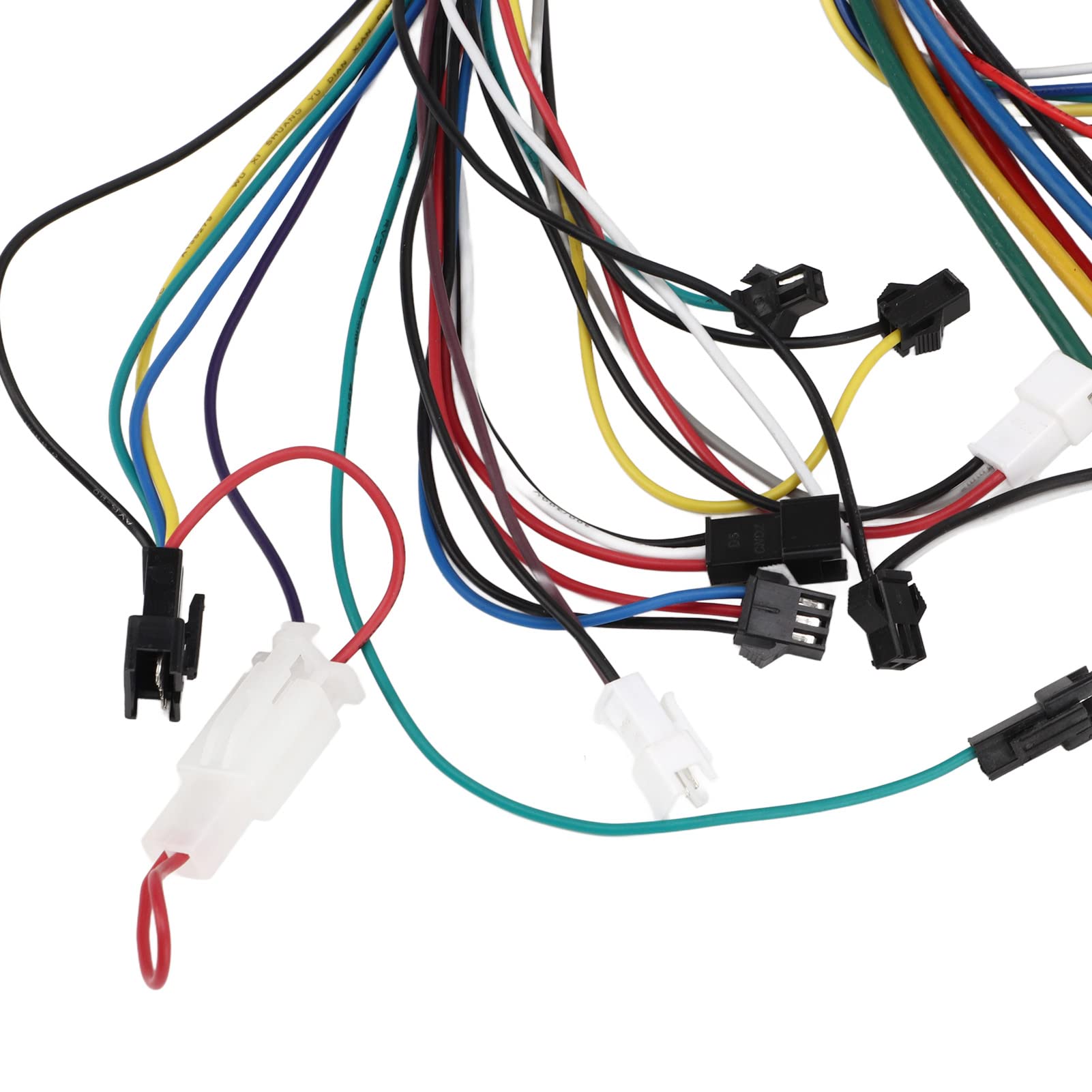

• Controller Harness: The functions of the controller harness include: power supply positive and negative poles, motor three phase line, light horn power supply, power assist sensor, speed regulating handle, reverse reverse, intelligent learning, low brake power failure, motor hall line, and main switch (electric control lock).

n

Binding: Apparel

model number: Drfeifyd7h5i2ypnx

Part Number: Drfeifyd7h5i2ypnx

Details: 1. Data Display: Single mileage and time, real time speed, battery power and voltage, gear indication cumulative average speed, total mileage, cumulative maximum speed, indication, 6km/h boost and indication, real time power, real time current, fault code, etc.
n2. Aluminum Controller: The controller shell is made of aluminum alloy and has a design. Because of the good heat dissipation function, it can guard the internal circuit, so as to avoid thermal overload.
n3. Convenient Installation: The controller is suitable for electric , electric scooters, etc. The panel is suitable for handlebars with a diameter of 22.5mm.
n4. Controller Harness: The functions of the controller harness include: power supply positive and negative poles, motor three phase line, light horn power supply, power assist sensor, speed regulating handle, reverse reverse, intelligent learning, low brake power failure, motor hall line, and main switch (electric control lock).
n5. Conversion: The conversion of greatly improves the riding fun, and is suitable for cyclists who like challenges. These accessories can be used separately. It can also be used in combination.
n
nSpecification:
nItem Type: Electric Controller Kit
nMaterial: Aluminum alloy, ABS
nWeight: Approx. 1410g/49.74oz
nVoltage: 48V 60V
nPower: 1500W
nCurrent Limit: 50A
nLow Voltage: 42V 53V
n
nHow to Use:
nThe panel socket can be connected to the corresponding socket of the controller to realize the function. If you need to connect other accessories, please follow the instructions.
n
nPackage List:
n1 x Panel
n1 x Controller
n1 x Instruction

Package Dimensions: 13.2 x 9.3 x 2.9 inches
